Merits Health P301 Gemini

In stock
Merits Health is one of trusted brands when it comes to Mobility products. They include different warranty options so that you will feel at ease using your mobility product. We highly recommend consulting with our product experts before placing your order. Make sure to charge your batteries daily for the first 2 weeks during the break-in period. The batteries must be broken in for a few weeks to reach optimal range.
Please take the time to read the user manual, and our service plan explainer to get the most value out of your product.
Select Options BelowMerits Health P301 Power Wheelchair Gemini
Offering a variety of Merits Health Products, Mobility Scooters Direct can help you find the most suitable power wheelchair for your needs. For an average build, The P301 is a great choice! Holding up to 450 lbs with a 20" or 22” seat with the option to upgrade this model into an elevating power wheelchair. The P301 is very supportive, it has been lowered making it much easier to get around and it is the most stabilized of all power wheelchairs in its class. Please note that if you purchase this model with the elevating seat option it is only available in the red color.
Going 5 mph and lasting as long as 20 miles before charging The P301 is an excellent choice if you're looking for an indoor or outdoor power chair, it has a turning at a radius of 21” and an overall width of 24". The P301 is a great power wheelchair you don’t want to pass on and Mobility Scooters Direct is ready to offer the best deals on any of Merits Health Products!
The P301 is a great option if you're looking to purchase a affordable heavy duty electric wheelchair, you can always view the rest of our options on our heavy duty power wheelchairs page. Alternatively, if you'd like to see a complete list of all our battery powered wheelchairs with the option to use inventory filters (i.e. price, brand, speed etc) click on the main tab at the top of the page. Click here to see all of Merits Health Power Wheelchairs that we offer.
Key Features & Info About This Model
- Model: P301-1ARMU
- Intended for Heavy Duty Purpose
- Lowered Frame for Easy Maneuverability
- Foldable Captains Seat
- Weighs 242 lbs
Mobility Product Parts
As a dealership we carry different brands which give us access to all the parts for that specific brand that are still being produced. To see all of our parts listing, you can visit our power wheelchair parts page. For further assistance, you can also call our Mobility Direct Parts Department Phone Number: 877-321-3241.
User Manual
To download or view the user manual please click this Merits Health P301 Wheelchair user manual link.
To download or view the service manual please click this P301 Gemini Wheelchair service manual link.
Total Weight | 350.000000 |
---|---|
Parts by Model URL | Shop For Parts |
Brand | Merits Health USA |
Weight Capacity | Up to 450 LBS or 350 LBS (with power elevating seat option) |
Travel Range | Up to 20 Miles |
Ground Clearance | 4" |
Speed | Up to 5 MPH |
Incline Rating | 12° |
Air Line Friendly | No |
Heaviest Piece | 126 LBS |
Total Weight | 242 - 350 LBS |
Turning Radius | 21" |
Brakes | Automatic (Magnetic) |
Suspension | No |
Suspension Type | No |
Overall Length | 41" |
Overall Width | 24" |
Height | 45" |
Disassembles | Yes |
Foldable | No |
Seat to ground height Range | 22"-24" or 24"-29" (with elevating seat) |
Seat Type | Several |
Hitch Receiver | Yes |
Height Adjustable Seat | Yes |
Removable Seat | Yes |
Seat Width | 22" |
Seat Depth | 22" or 20" (with elevating seat) |
Seat Back Height | 22" or 20" (with elevating seat) |
Seat Recline | No |
Seat Slider | No |
Seat Rotation | Yes |
Seat Belt | Yes |
Armrests Included | Yes |
Armrest Width Adjust | Yes |
Height Adjust Armrest | Yes |
Flip Up Armrests | Yes |
Removable Armrests | Yes |
Seat Post Type | Clover |
Folding Backrest | Yes |
Elevating Seat | Optional |
Tire Type | Solid |
Front Tire Size | 9" |
Middle Tire Size | 14" |
Rear Tire Size | 9" |
Joystick Options | Several |
Horn | Yes |
Lights | No |
Turn Signals | No |

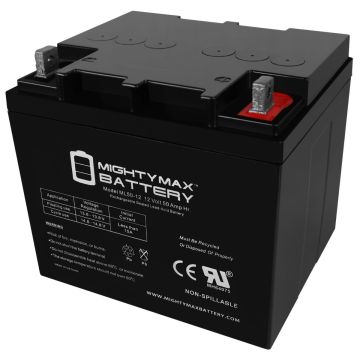

Battery Voltage | 12 Volts |
Amp Hours | 50 AH |
Battery Chemistry | Sealed Lead Acid (SLA) |
Battery Weight | 74 LBS pack |
Number of Batteries | 2 |
Lithium Battery Upgrade | No |
Battery Charger Specs | 24 Volt 5 Amp |
Battery Charger Connection | XLR (3-pin) |
Charging Port(s) | On Joystick & Base |
Watt Hours | 528 |
USB Port | No |
Key Fob | No |
Drive Type | Mid Wheel Drive |
Drive Modes | FWD & REV |
Storage Compartments | No |
Controller Type | Dynamic Shark 60A/PG VR2 60A |
Transit (Tie-Down) Loops | No |
Shipping Dimensions | L: 42" W: 27" H: 25" |
Service Contract | Optional |
Service Plan Length | Optional |
Electronics Warranty | 1 Year Limited |
Battery Warranty | 6 Month Limited |
Motor Warranty | 1 Year Limited |
UPC | 642896630024 |
