BuzzAround Carry-On GB120 Technical Service Guide
The BuzzAround Carry-On GB120 Technical Service Guide serves as a centralized resource for technicians, service professionals, dealers, and owners seeking technical information for the Golden Technologies GB120 mobility scooter.
This guide is intended to organize available service documentation, troubleshooting procedures, replacement instructions, multi meter testing procedures, illustrated parts breakdowns, wiring diagrams, and technical reference materials into a single location for easier access.
As additional manufacturer documentation becomes available, new technical resources may be added to support diagnostics, repairs, maintenance, and parts identification for the GB120 platform.
Table of Contents
GB120 Complete Tear Down
The video below shows our complete tear down of the GB120.
Wiring Diagrams
The wiring diagrams associated with the GB120 service documentation are provided below for technician reference.
To improve readability and accessibility, wiring diagrams are separated from the original service documentation and provided as individual image files whenever possible.
The following diagrams may be included as available documentation is processed:
- Main Wiring Diagram
- Controller Wiring Diagram
- Battery Circuit Diagram
- Charging Circuit Diagram
- Throttle and Console Wiring Diagram
Wiring Diagrams

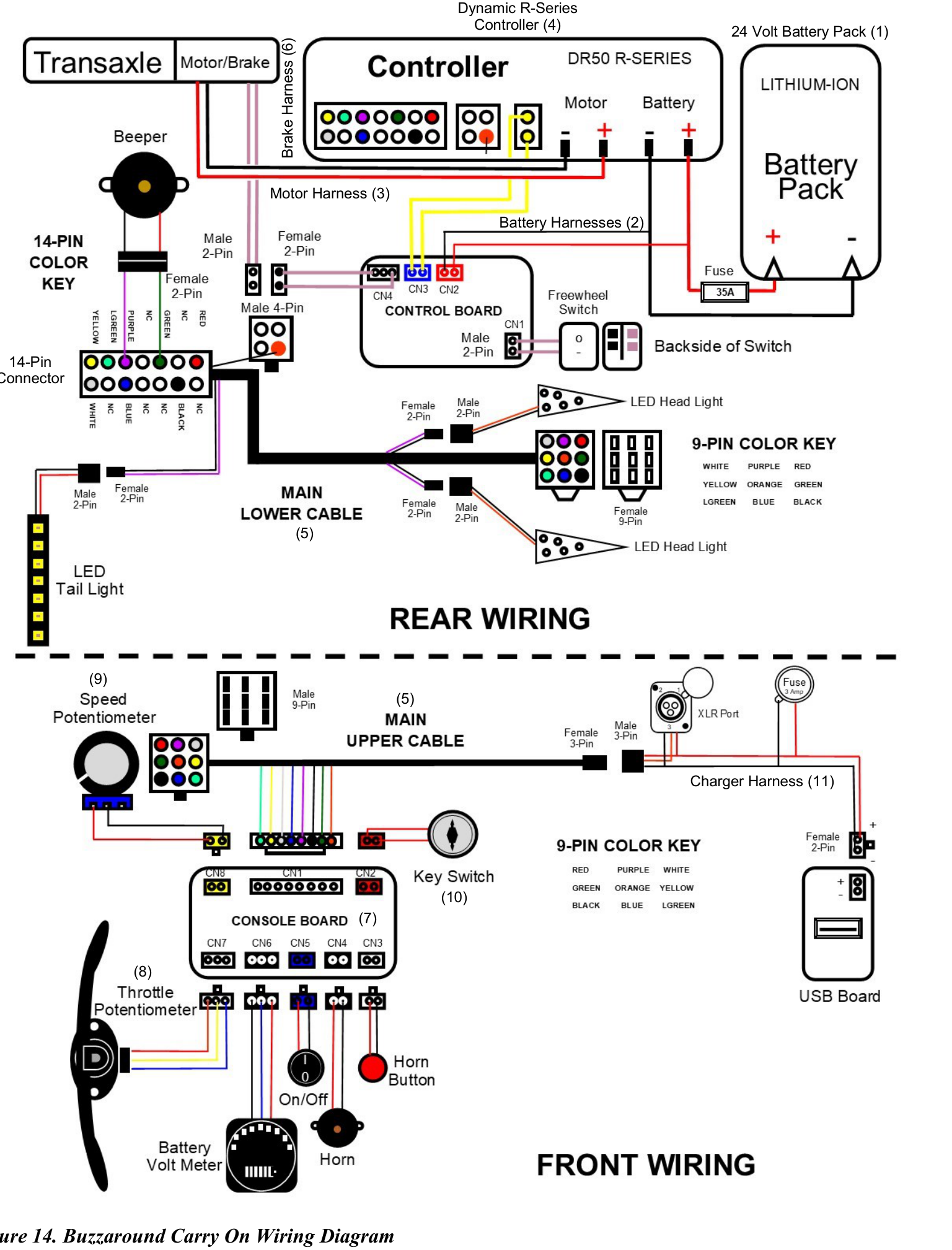

The wiring diagram below was extracted from the Golden Technologies BuzzAround Carry-On GB120 Service Guide for technician reference during troubleshooting, multi meter testing, and replacement procedures.
Replacement Parts
Looking for replacement parts referenced throughout this technical service guide?
Visit the GB120 Parts Page to view available assemblies, replacement components, batteries, controllers, harnesses, wheels, seating components, and manufacturer replacement parts.
