How to Align a Mobility Scooter: DIY Front Wheel Alignment Guide

If your mobility scooter is pulling to one side, wearing out the front tires unevenly, or feeling harder to steer than usual, it may need a front wheel alignment.

The good news is that many mobility scooter alignments are fairly simple. Most scooters use adjustable tie rods on the front wheels, similar to the basic steering setup you would find on other small vehicles.

This guide explains the general process for checking and adjusting mobility scooter alignment. Different scooter models may vary, so always use this as a general educational guide and refer to your owner’s manual when available.

Important safety note: If you are not comfortable working underneath your scooter, lifting your scooter, or adjusting steering components, contact a qualified mobility scooter technician or local dealer for help.

Video Demonstrations

This article is based on several DIY alignment videos we created on different mobility scooter models. The process is generally similar across many scooters, but each model may have different access points, body panels, tie rod locations, and hardware sizes.

Golden Eagle All-Terrain Mobility Scooter Alignment

Pride Go-Go Mobility Scooter Alignment

Baja Wrangler 2 Mobility Scooter Alignment

Signs Your Mobility Scooter May Need an Alignment

Mobility scooter alignments are not something most owners need to do often. However, they can become necessary if the scooter hits something, is used heavily outdoors, or starts showing signs of steering or tire wear issues. Normally, I only see off-road capable mobility scooters come in to the shop for repairs.

Common signs of a bad mobility scooter alignment include:

• One front tire wearing down faster than the other.
• Both front tires wearing unevenly.
• The scooter pulling to the left or right.
• The scooter feeling like it does not want to drive straight.
• The front wheels visibly pointing inward or outward.
• Reduced battery range from extra rolling resistance.
• The scooter feeling harder to steer than normal.
• The front tires squealing or scrubbing while turning.

If the front tires are bald but the rear tires still look good, that is often a strong clue that the scooter may be out of alignment.

Understanding Toe-In and Toe-Out

When checking mobility scooter alignment, the main thing you are looking for is whether the front wheels are pointing straight.

Toe-in means the front of the tire is pointing inward toward the center of the scooter.

Toe-out means the front of the tire is pointing outward away from the scooter.

Either condition can cause problems. If a front wheel is toed in or toed out too much, the tire can scrub against the ground instead of rolling smoothly. That can wear out the tire quickly, make the scooter pull to one side, reduce range, and put extra strain on the motor and steering system.

Tools You May Need

The tools required will vary depending on your scooter model, but most basic alignment jobs can be done with simple hand tools.

• Adjustable wrench or wrench set.
• Measuring tape.
• Long straight edge, PVC pipe, level, or straight board.
• Jack or safe support block.
• WD-40 or penetrating oil if the tie rod is seized.
• Pliers if the tie rod needs help breaking loose.
• Grease gun if your scooter has grease zerks.
• Shop towel or rag for cleaning.

A jack is not always required, but it can make the job easier because it allows the front wheel to move freely while you make adjustments.

Step 1: Park the Scooter Safely

Park the scooter on a flat, level surface.

Turn the scooter off, remove the key, and make sure it is stable before working around the front wheels.

If you are going to lift the scooter, make sure the jack or support is positioned safely under a strong part of the frame. Never place your hands or body under an unsupported scooter.

Step 2: Center the Tiller or Handlebars

Before checking alignment, make sure the tiller or handlebars are as straight as possible.

This is important because if the steering is turned slightly left or right, the front wheels may look misaligned even when they are not.

On some models, you can visually line up the tiller with the seat platform or centerline of the scooter. The goal is to make the steering assembly as straight as possible before measuring or adjusting the wheels.

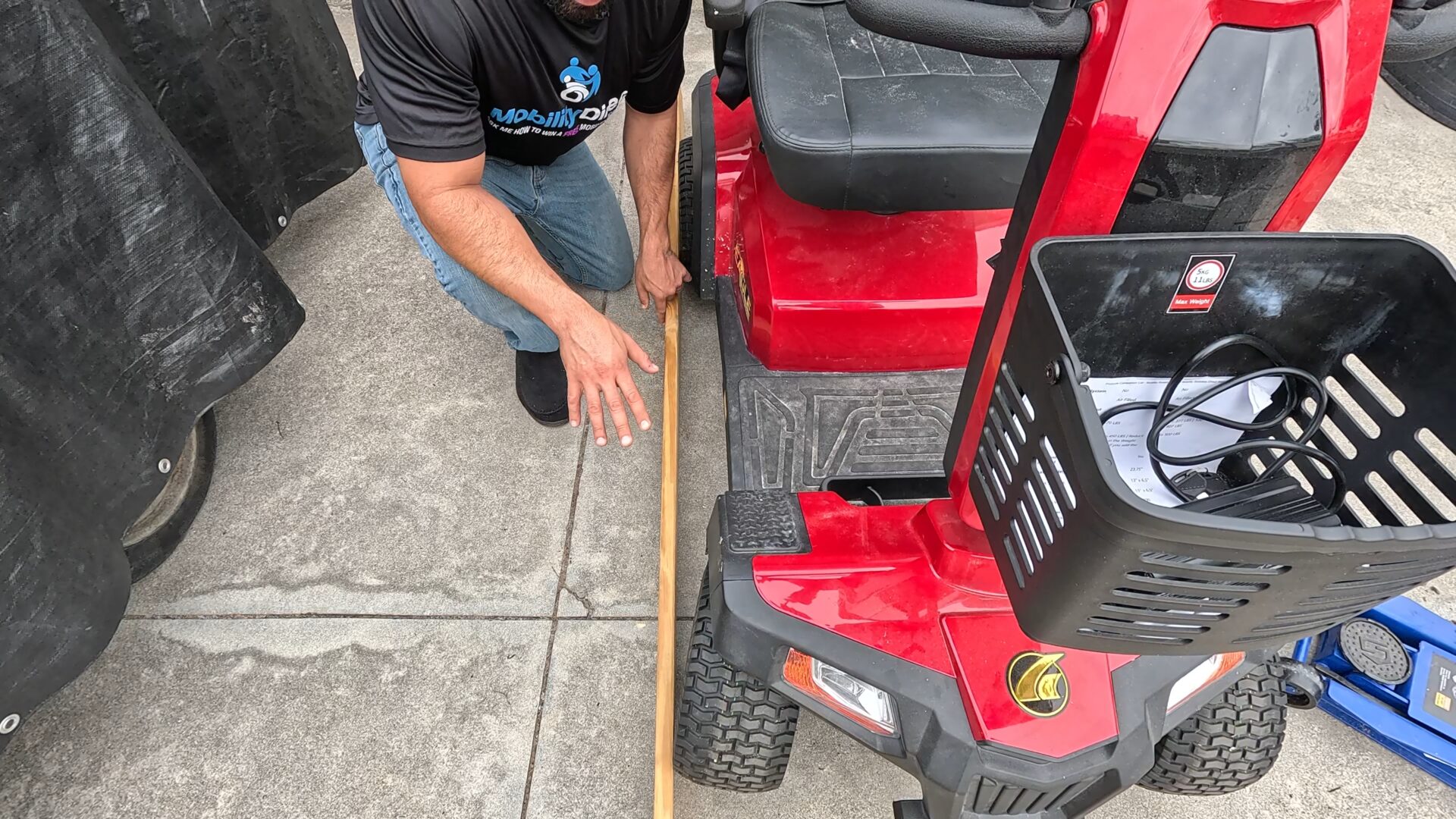

Step 3: Use the Rear Wheels as a Reference Point

On most mobility scooters, the rear wheels are fixed to the transaxle and do not have tie rod adjustment points.

That makes the rear wheels a useful reference point when checking the front wheel alignment.

Place a long, straight object such as a PVC pipe, level, or straight board against the rear tire and extend it forward toward the front tire.

If the front tire is straight, it should line up closely with that straight edge. If there is a large gap at the front or back of the tire, the wheel may be toed in or toed out.

Make sure your straight edge is actually straight. A warped board can give you a bad reading.

Step 4: Identify Which Front Wheel Needs Adjustment

Look at both front wheels carefully.

Sometimes only one front tire is out of alignment. Other times, both front wheels may need adjustment.

On many scooters, each front wheel has its own tie rod. The left front tire has one tie rod, and the right front tire has another.

Before loosening anything, identify which tie rod controls the wheel you need to adjust.

Step 5: Locate the Tie Rod and Jam Nuts

The tie rod is usually a narrow metal rod connected to the steering assembly near the front wheel.

Most tie rods have adjustment nuts, also called jam nuts, on each end. These nuts lock the tie rod in place and prevent it from rotating during normal use.

To adjust the alignment, you usually need to loosen both jam nuts on the tie rod.

Some scooters make this easy. Other models may require removing body panels to access the tie rod and adjustment nuts.

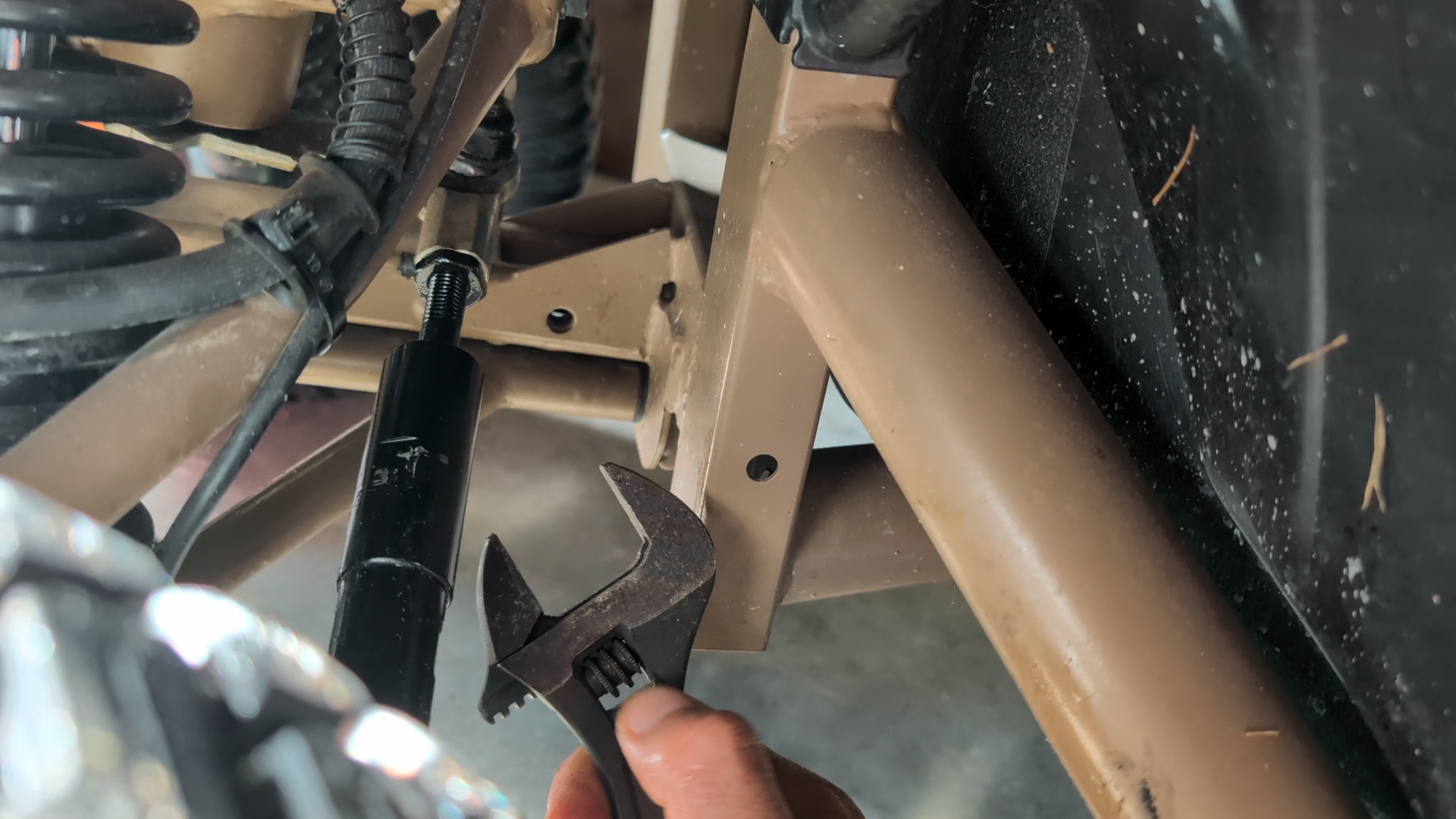

Step 6: Loosen Both Tie Rod Nuts

Using the correct wrench, loosen the jam nut on one side of the tie rod.

Then loosen the jam nut on the other side.

You do not need to remove the nuts completely. You only need enough space so the tie rod can rotate.

If the tie rod is stuck, a small amount of penetrating oil may help. Let it sit for a moment before trying again.

Step 7: Rotate the Tie Rod to Adjust the Wheel

Once both jam nuts are loose, rotate the tie rod slowly.

As you turn the tie rod, the front wheel should begin to move inward or outward.

Turn it a little at a time. Small adjustments can make a big difference.

If the wheel is toed out, rotate the tie rod in the direction that brings the front of the tire inward.

If the wheel is toed in, rotate the tie rod in the direction that pushes the front of the tire outward.

The exact direction will vary depending on the scooter design and which side you are adjusting, so watch the tire as you rotate the rod.

Step 8: Check the Alignment Again

After making a small adjustment, recheck the wheel position using your straight edge.

Line up your PVC pipe, level, or straight board against the rear wheel again and compare it to the front tire.

The goal is to get the front tire as straight as reasonably possible.

This does not need to be perfect down to a fraction of a millimeter. For most mobility scooters, getting the alignment visually straight and within roughly 1/16 to 1/8 of an inch is usually good enough for practical use.

Alternative Method: Measuring From the Center of the Frame

If your scooter has a design where the rear wheels are not a helpful reference point, you may be able to measure from the center of the frame instead.

Find a reliable center point on the scooter frame.

Then measure from that center point to the middle of the tread on the left front tire.

Next, measure from the same center point to the middle of the tread on the right front tire.

If both measurements match closely, the front wheels are likely aligned evenly.

If one side is off, adjust the tie rod slightly and measure again.

Step 9: Tighten the Jam Nuts

Once the wheel looks straight, tighten the tie rod jam nuts back into place.

Start by getting both nuts finger tight so they are not working against each other.

Then tighten them securely with your wrench.

Do not leave the nuts loose. If the jam nuts are not tightened properly, the tie rod can rotate during use and the scooter may fall back out of alignment.

Step 10: Lower the Scooter and Perform a Final Visual Check

If you lifted the scooter, lower it carefully back onto the ground.

Straighten the tiller again and visually inspect both front wheels.

Use your straight edge one more time if needed.

The front tires should appear straight, even, and pointed in the same direction as the scooter frame.

Step 11: Test Drive the Scooter

After the alignment is complete, take the scooter for a slow test drive in a safe open area.

Pay attention to whether the scooter:

• Tracks straight.
• Pulls left or right.
• Feels smoother than before.
• Has less tire scrub.
• Steers normally.

If the scooter still pulls to one side, recheck the alignment and inspect for damaged steering components.

Bonus Maintenance While You Are Under the Scooter

While you are already working near the front wheels and steering linkage, it is a great time to handle a few basic maintenance items.

Consider checking:

• Front tire condition.
• Rear tire condition.
• Tire pressure if your scooter uses air-filled tires.
• Loose axle hardware.
• Loose steering hardware.
• Wheel bearings.
• Steering play.
• Grease zerks if equipped.
• Dirty or dry axle areas.

If your scooter has grease fittings, also called zerk fittings or grease nipples, this is a good time to add grease with a grease gun.

Do not overdo it. Use the correct grease and add only what is needed.

Keeping steering and suspension parts clean and properly lubricated can help reduce wear and keep your scooter operating smoothly.

When Alignment Will Not Fix the Problem

An alignment adjustment only helps if the issue is actually caused by the tie rod position.

Alignment may not fix the scooter if there are damaged or worn components.

Stop and inspect more carefully if you notice:

• Bent tie rods.
• Bent steering arms.
• Damaged steering knuckles.
• Excessive steering play.
• Loose wheel bearings.
• Cracked frame components.
• Uneven tire pressure.
• Damaged rims.
• Loose or missing hardware.

If any of those issues are present, the scooter may need replacement parts or professional service before it can be aligned properly.

Common Mobility Scooter Alignment Mistakes

• Adjusting the tie rod without centering the tiller first.
• Using a warped board as a straight edge.
• Only loosening one jam nut instead of both.
• Over-adjusting the tie rod too far in one direction.
• Forgetting to tighten the jam nuts afterward.
• Trying to align the scooter when a steering component is bent.
• Ignoring tire pressure before checking alignment.
• Assuming the rear wheels are adjustable when they usually are not.

Should You Do This Yourself or Call a Technician?

If you are mechanically inclined and comfortable using basic tools, a mobility scooter alignment may be something you can do yourself.

However, not everyone should attempt it.

You should contact a professional if:

• You are not comfortable lifting the scooter.
• You cannot safely access the tie rods.
• The steering components look damaged.
• The scooter has been in a crash.
• You are unsure which tie rod controls which wheel.
• You cannot get the alignment close after several attempts.
• The scooter still pulls after adjustment.

If you are local to Mobility Direct, our technicians may be able to help with alignment, repairs, tires, and other service work. If you are not local, contact the dealer you purchased from or a qualified mobility scooter repair provider.

Need Tires, Tie Rods, or OEM Parts?

If your alignment issue caused tire wear, you may need replacement tires.

Mobility Direct carries OEM replacement parts for many popular mobility scooter brands, including tires, wheels, chargers, batteries, steering components, and more.

If you need help finding the correct part, contact us with your scooter make and model, or fill out our parts request form.

Get a Free Mobility Direct Catalog

If you are shopping for a mobility scooter, power wheelchair, lift chair, batteries, chargers, or accessories, request a free Mobility Direct catalog.

Our catalog includes product information, buying guides, company information, and discount opportunities.

You can request a free catalog on MobilityDirect.com or call us and speak with one of our non-commissioned mobility experts.

Final Thoughts

A mobility scooter alignment is a simple but important maintenance task.

If the front wheels are toed in or toed out, the scooter may pull to one side, wear out tires quickly, reduce battery range, and place extra strain on the motor.

By using a straight edge, centering the tiller, adjusting the correct tie rod, and tightening the jam nuts securely, many scooter owners can correct minor alignment issues at home.

While you are already underneath the scooter, take the opportunity to clean the area, inspect the tires, check for loose hardware, and grease any fittings if your scooter has them.

When in doubt, contact a professional. A properly aligned scooter will ride smoother, protect your tires, and help your mobility scooter perform the way it should.
