If your mobility scooter will not move, keeps beeping, drags when you drive, or feels like the wheels are locked up, the brake system may be involved.
That can sound scary, but do not panic. Mobility scooter brakes are safety systems, and many brake-related issues are caused by simple things like the freewheel lever being in the wrong position, dirt around the brake switch, weak batteries, or loose wiring.
At Mobility Direct, we troubleshoot mobility scooter brake problems often. In this guide, we will explain how scooter brakes work, what symptoms to look for, what to check first, and when it may be time to contact a technician.
How Mobility Scooter Brakes Work
Most mobility scooters use an automatic braking system called an electromagnetic brake. Below is a quick demonstration video showing the way electromagnetic brakes work.
This brake is usually attached to the motor or transaxle assembly.
When you release the throttle, the scooter automatically slows down, and the brake engages.
When you press the throttle, the controller sends power to the system and allows the brake to release so the scooter can move.
This is very different from a bicycle or car brake.
On most standard mobility scooters, you do not manually squeeze a brake handle to stop during normal use. The scooter’s electronics handle braking automatically.
Some faster or heavy-duty scooters may also include supplemental manual disc brakes, but the automatic electromagnetic brake is still one of the most important safety systems on the scooter.
Common Signs of a Brake Problem
Brake-related problems can show up in several different ways.
- The scooter turns on but will not move.
- The scooter gives a brake-related beep code.
- The wheels feel locked.
- The scooter is hard to push.
- The scooter rolls when it should stay still.
- The scooter jerks when trying to move.
- The scooter drags or feels sluggish.
- You hear clicking, grinding, squeaking, or rubbing noises.
- The scooter stops suddenly or will not respond to throttle.
Not all of these symptoms mean the brake assembly itself is bad.
Sometimes the brake system is simply detecting a safety issue and preventing the scooter from driving.
Check out the video below where I show you how to replace the entire motor and brake assembly on a Go Go scooter that was making a grinding / clicking sound.
1. Check the Freewheel Lever First
The freewheel lever should always be the first thing you check.
Most mobility scooters have a lever that allows the scooter to be pushed manually when the power is off.
When the lever is in freewheel mode, the automatic brake is disengaged.
For safety reasons, many scooters will not drive when the freewheel lever is in the wrong position.
This often causes a beep code and makes the owner think something major is wrong.
Turn the scooter off, move the freewheel lever fully into drive mode, and then turn the scooter back on.
In many cases, that simple step solves the problem. Follow along with our video tutorial below if you’re not familiar with the process of engaging or disengaging neutral mode on a mobility scooter.

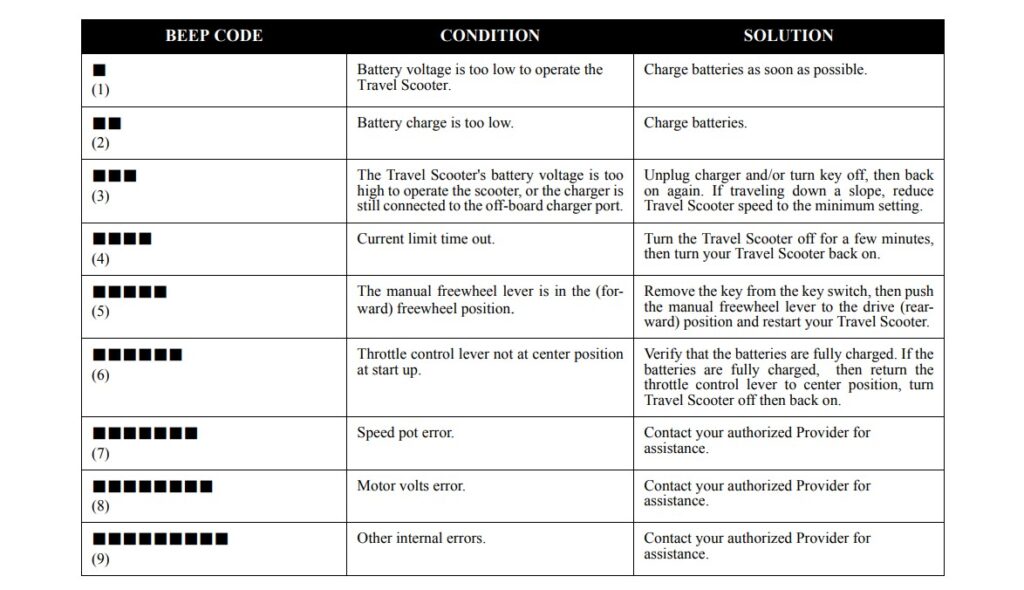

2. Listen for Beep Codes
If your scooter is beeping, count the beeps before the sequence repeats.
Many scooters use beep codes to identify faults.
On many Pride Mobility scooters, a five-beep code often points to a brake or freewheel lever issue.
That does not always mean the brake assembly is bad.
It may simply mean the scooter thinks the brake is disengaged or is not communicating properly.
Always check your user manual for the exact beep code chart for your scooter model.
3. Make Sure the Scooter Is Not in Charge Inhibit Mode
Most mobility scooters will not drive while the charger is plugged in.
This is called charge inhibit mode.
It is a safety feature that prevents the scooter from moving while connected to the charger.
If your scooter powers on but will not move, make sure the charger is completely unplugged from the charging port.
If the scooter drives normally after unplugging the charger, the brake system may not be the problem at all.
4. Check for Sand, Dirt, and Debris
Dirt and debris can interfere with brake-related components.
This is especially common if the scooter has been used near the beach, on sandy paths, in dusty areas, or outdoors frequently.
Sand can sometimes get around the brake release area or brake switch and prevent the system from reading properly.
If the scooter believes the brake is disengaged, it may refuse to drive.
Inspect the area around the freewheel lever, brake release mechanism, motor, and transaxle.
If you see sand or debris, clean the area carefully.
A can of air duster can sometimes help remove loose debris from tight areas.
5. Look for Corrosion or Moisture Damage
Moisture and corrosion are major causes of brake and electrical problems. Mobility scooters are not waterproof.
If your scooter has been exposed to rain, humidity, salt air, sprinklers, puddles, or outdoor storage, corrosion may develop around connectors, wiring, brake switches, and electrical components.
Corrosion can interrupt communication between the brake assembly and controller.
This can make the scooter think there is a brake fault even when the brake itself may not be the only issue.
Look for rust, green or white buildup on connectors, brittle wires, loose plugs, or signs of water intrusion.
If corrosion is present, the scooter may need professional diagnosis before replacing parts. Check out the video below where I take apart a Victory mobility scooter down to the frame to find out that most of its parts have been damaged due to corrosion and exposure to moisture.
6. Inspect the Brake Wiring and Connectors
The electromagnetic brake usually has wiring that connects it to the controller.
If those wires become loose, damaged, corroded, pinched, or disconnected, the scooter may not move.
This can happen from vibration, rough terrain, transport, moisture exposure, or age.
Check for obvious wiring problems near the motor and brake assembly.
Look for connectors that are not fully seated.
Look for broken clips, cracked housings, damaged insulation, or wires that appear stretched or pulled.
If you are not comfortable inspecting wiring, contact a technician.
7. Test the Brake Assembly With a Multimeter
Some brake assemblies can be tested with a multimeter by checking resistance in ohms.
This is more advanced than basic visual troubleshooting, but it can help confirm whether the brake assembly is within the expected range.
The expected resistance can vary depending on the scooter model and brake assembly.
That means you should not assume one number works for every scooter.
You need the correct manufacturer specifications for your model.
If the brake is far outside the expected range, it may be faulty.
If the reading is close to the expected range, the brake may be okay and the issue may be somewhere else in the wiring, controller, freewheel switch, or connectors.
Check out the video below which serves as a general guide for testing a mobility scooter’s braking system with a multi-meter.
If you are not comfortable using a multimeter, this is a good point to contact a qualified technician.
8. Do Not Bypass the Brake System
Never bypass, disable, or modify a mobility scooter brake system to force the scooter to move.
The brake is there for safety.
If the scooter is refusing to drive because it detects a brake fault, the correct solution is to diagnose the problem, not bypass the protection.
A scooter with a disabled brake can roll unexpectedly, fail to stop correctly, or become dangerous on ramps and inclines.
Brake repairs should always be treated seriously.
9. Manual Disc Brake Issues
Some heavy-duty, outdoor, or faster mobility scooters also include manual disc brakes.
These are usually supplemental brakes, not the main automatic electromagnetic brake system.
Manual disc brake problems may feel different from electromagnetic brake problems.
Common manual brake symptoms include squeaking, rubbing, uneven stopping, brake drag, or a brake handle that feels too loose or too tight.
Sometimes the issue is simply that the brake cable needs adjustment.
Other times, the brake pad may be rubbing against the disc, the axle bolt may be too tight, or the wheel bearing may need cleaning and lubrication.
If one wheel stops quickly and the other keeps spinning, the brakes may need adjustment.
If a wheel barely spins even when the brake is not being used, check for brake drag, bearing issues, or overtightened hardware.
10. Brake Drag Can Make the Scooter Feel Weak
A dragging brake can make the scooter feel slow, weak, or underpowered.
This can sometimes be mistaken for a battery problem or motor problem.
If the brake pad is rubbing against the disc, the motor has to work harder to move the scooter.
That can reduce performance, increase battery drain, create noise, and put extra stress on the motor.
If your scooter feels sluggish and you hear rubbing or squeaking, inspect the wheels and brake area before assuming the batteries are bad.
11. When the Brake Assembly May Need Replacement
A brake assembly may need replacement if it fails resistance testing, does not release correctly, has damaged wiring, is physically broken, or continues creating brake faults after all basic checks have been completed.
Brake assemblies are model-specific.
You should not install a random brake assembly just because it looks similar.
Using the wrong part can create compatibility problems or unsafe operation.
Whenever possible, use OEM replacement parts designed for your exact scooter model.
12. When to Call a Technician
You should call a technician if the scooter continues showing brake faults after checking the freewheel lever, charger, batteries, and visible wiring.
You should also get help if there are signs of corrosion, damaged wires, burnt connectors, broken brake components, or if you are not comfortable using a multimeter.
Brake systems are safety systems.
It is okay to check the basics yourself, but advanced brake diagnosis should be handled carefully.
Need OEM Brake Parts?
If your scooter needs a replacement brake assembly, brake cable, motor assembly, wiring harness, or related component, we strongly recommend using OEM parts whenever possible.
Cheap aftermarket parts can create compatibility issues, unreliable performance, fault codes, or unsafe operation.
At Mobility Direct, we carry OEM replacement parts for many trusted brands, including Pride Mobility, Golden Technologies, Afikim, and more.
If you are not sure which brake part your scooter needs, you can fill out our parts request form, and our team can help identify the correct replacement for your model.
In many cases, customers who contact us directly may also qualify for discounts on OEM parts.
Get Help From Our Forum and FAQ Section
If you are unsure whether your scooter has a brake issue, our Mobility Direct forum and FAQ section can help.
Our forum works like a Reddit-style community for mobility scooter owners.
You can register, ask questions, describe your symptoms, post your scooter model, and get feedback from technicians and other scooter users who may have dealt with a similar issue.
Our FAQ section also includes helpful answers about common scooter problems, beep codes, parts, troubleshooting, and maintenance.
Why Trust Mobility Direct?
Mobility Direct is not just an online dealer.
We are a licensed and accredited home medical equipment provider with brick-and-mortar locations, real technicians, non-commissioned sales experts, and an A rating with the Better Business Bureau.
We create repair videos, troubleshooting guides, product reviews, comparison videos, travel videos, and maintenance education to help mobility scooter owners make better decisions.
Our goal is not just to sell mobility equipment. Our goal is to help people stay independent, confident, and mobile.
Get a Free Mobility Scooter Catalog
If you would like to learn more about mobility scooters, power wheelchairs, lift chairs, accessories, and replacement parts, you can request a free Mobility Direct catalog.
Our catalog includes product information, educational resources, discount codes, and more information about our company and mission.
Supporting the Disabled Community
Part of every purchase made through Mobility Direct helps fund our community giveback program.
We regularly donate mobility scooters and power wheelchairs to people in need who cannot afford them on their own.
We also randomly give away scooters to people who comment on and subscribe to our YouTube channel.
When you support Mobility Direct, you are helping us continue that mission.
Final Thoughts
If your mobility scooter has a brake problem, start with the simple things first.
Check the freewheel lever, listen for beep codes, make sure the charger is unplugged, inspect for dirt or corrosion, and look for loose wiring.
Not every brake fault means the brake assembly is bad.
Sometimes the scooter is simply protecting itself because it detects something unsafe.
Brake systems are important safety systems, so do not bypass them or ignore warning signs.
